Compact Wheelchair
Product Details:
- Type Standard Wheel Chair
- Material Steel
- Portable Yes
- Foldable Yes
- Adjustable Yes
- Supporting Belt Yes
- Supporting Belt Type Back
- Supply Ability : 10 Piece Per Week
164000.00 INR/Piece
X
Price And Quantity
- 1 Piece
- 164000.00 INR/Piece
Product Specifications
- Yes
- 03 Years
- Yes
- 1300 Millimeter (mm)
- 84 Kilograms (kg)
- Vinyl Fabric
- Fixed
- Back
- Yes
- Yes
- PVC
- Standard Wheel Chair
- Polished
- Steel
- Electric
Trade Information
- 10 Piece Per Week
- 7-10 Days
- All India
Product Description

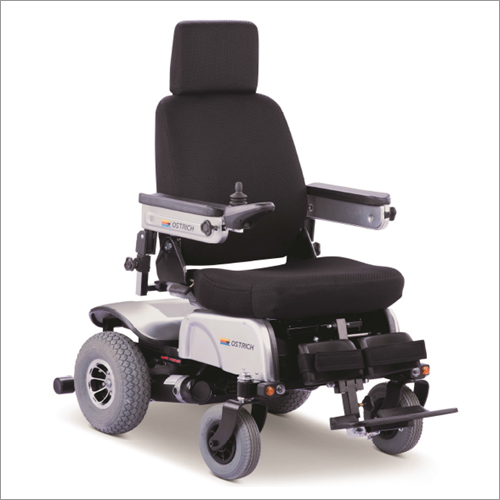

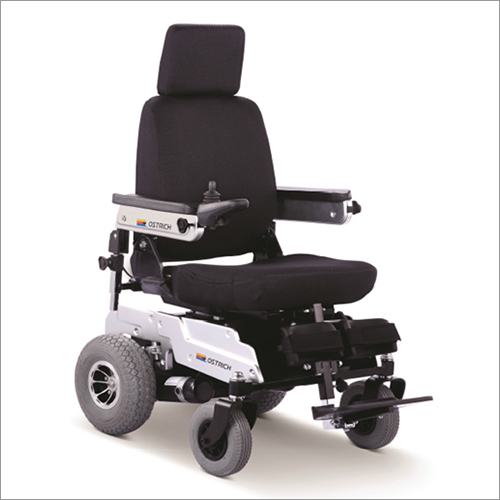

Beautiful And Compact New Generation Wheelchair
Tetra EX a beautiful and compact new generation wheelchair powered with revolutionary Split Frame Chassis SFC from Ostrich Mobility This mobility equipment provides excellent manoeuvrability in both indoor and outdoor conditions The removable seat design helps in portability
Technical Specification
- Load capacity 130 Kg 286lbs
- Speed 75kmH max
- Speed selection 5 speeds
Motor
- Power: 320- 340 W
- Motor speed: 5300 RPM
- Gear ratio: 32:1
- Brake: Electromagnetic
- Permissible Gradeability: 12 Degrees
- Drive Range :10-15 km /charge
Tyre & Battery
- Tire(Puncture free foam filled rubber tires)
- Front- Tire diameter: 190 X50 mm
- Rear-Tire Diameter: 260X80mm
- Anti tippers- 32 mm/1.2 diameter solid
- Battery: 24 V 24Ah Sealed Maintenance Free VRLA
- Charger: Input-230/240 V AC Single phase, Output-24 V-5 A DC
Dimensions
- Overall length with footrest and tipper wheel (at 90 degrees): 1000mm /39.37
- Overall width: 620mm /24.4
- Overall height: 1300mm/51.18
- Overall height after folding the seat: 760mm /29.92
- Overall weight: 84 Kg/185lbs
- Ground clearance:75mm/3 inches
- Turn circle radius:560mm/22.04
Seat
- Seat depth: 480mm /18.89
- Seat width: 470mm /18.5
- Backrest height: 590mm /23.22
- Backrest width: 460mm /18.11
- Seat baseheight from ground: 520mm /20.47
- Manual seat height adjustment up to 75mm /3
- Frame height when seat removed: 350mm/13.77
Arm Rest
- Width: 80mm/3.14
- Length :360mm /14.17
- Height adjustment: 100mm /4
- Width adjustment: yes
Foot Rest
- Length: 190mm/7.48
- Width: 340mm /13.38
- Length adjustment: 135mm /5.31
- Angle adjustment: Up to 90 degrees
